Product Description:

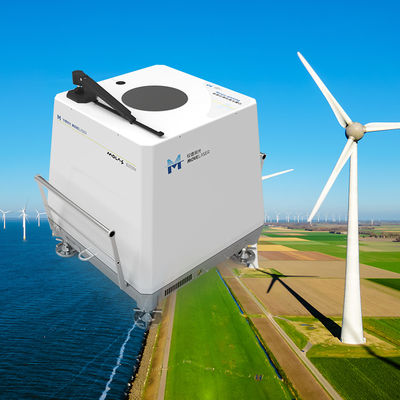

Molas B30oM is a wind lidar specifically developed for the purpose of measuring offshore wind energy. It incorporates the key features of the ground-based wind lidar Molas B300. What sets it apart is its capability to withstand the challenging conditions encountered at sea. Additionally, it comes equipped with a high-precision inertial measurement unit and an attitude compensation algorithm. These features enable Molas B30oM to be deployed on mobile platforms like buoys and ships, allowing for real-time measurement of wind speed with remarkable accuracy.
The design of Molas B30oM caters to the rugged environment of offshore wind energy measurement. By inheriting the strengths of the terrestrial counterpart, Molas B300, this wind lidar excels in providing reliable data in sea conditions. Its integration of a high-precision inertial measurement unit and an attitude compensation algorithm ensures that it delivers precise and real-time wind speed measurements even when placed on movable carriers such as buoys and ships.
Features:
Low cost:
Whether it is used with monopile platforms or buoys, the price is much lower than the construction cost of offshore wind towers.
Large range:
20~350m, 12 or 24 custom height levels.
High precision:
Full life cycle, accuracy up to 0.1m/s and 1°.
Time-saving and efficient:
The project construction period is short, saving valuable time and cost.
Flexible configuration:
Flexible wireless connection, enabling remote configuration delivery and data transmission.
Data security:
Data encryption has no risk of leakage.
Non-contact measurement:
Convenient and fast, leading the industry.
Technical Parameters:
|
Wind Speed Range
|
0~75m/s
|
|
Powered By
|
24V±5%DC,100~230VAC
|
|
Measuring Distance
|
Ordinary Type 20~350m
|
|
Sampling Rate
|
1Hz
|
|
Humidity Range
|
0% To 100%
|
|
Power
|
60W
|
|
Protection Class
|
IP68(whole Machine)
|
|
Size
|
554*430*576mm³ (including Handle)
|
|
Wind Speed Accuracy
|
0.1m/s
|
|
Measurement Layer
|
12 Or 24
|
Applications:
Movelaser's Offshore Wind Lidar product, model number MolasB300M, is designed for a variety of Product Application Occasions and Scenarios in the wind energy industry. This innovative wind Lidar technology is ideal for measuring distance accurately and efficiently in offshore wind farm applications.
With its Place Of Origin in China, the MolasB300M Wind Lidar offers a Minimum Order Quantity of 1 Set and comes packaged in a durable Flight Case for secure transportation. The Delivery Time is customizable to meet specific project requirements, making it a flexible solution for wind energy measurement projects.
The Offshore Wind Lidar is built to withstand harsh environmental conditions, with a Humidity Range of 0% to 100% and a Protection Class of IP68 for the whole machine. Despite its robust design, the Wind Lidar is lightweight, weighing less than 50kg and featuring compact dimensions of 554*430*576mm³, including the handle.
One of the key features of the MolasB300M Wind Lidar is its Wind Speed Accuracy of 0.1m/s, making it a highly precise tool for wind energy measurement in offshore environments. Whether used for site assessment, power performance testing, or wind resource assessment, this advanced Lidar technology provides reliable data for optimizing offshore wind farm operations.
